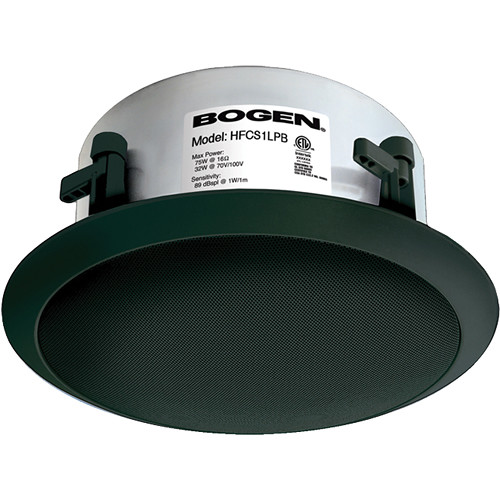

Bogen HFCS1LPB High-Fidelity Ceiling Speaker, Black

The HFCS1LPB from Bogen is a ceiling loudspeaker that delivers superior sound and clear intelligibility in a variety of ceiling environments. This speaker can be easily installed in hard-surfaced ceilings, suspended ceilings, and new constructions. It features several levels of power output controlled via a front-mounted rotary tap selector switch, ensuring flexibility for different audio needs. With its low-distortion design and computer-matched venting system, this speaker provides exceptional low-frequency response, making it ideal for both music and speech reinforcement.

Bogen HFCS1LPB Ceiling Speaker Features

• Wide-dispersion coaxial driver: Ensures broad, even coverage for consistent sound distribution throughout the area.
• Good off-axis response: Maintains smooth contouring, allowing for clear audio even from different angles.
• Computer-matched venting system: Provides full bass output, enhancing the overall audio experience.
• Low-profile housing: Allows for a greater range of installation options, adapting to various ceiling types.
• High power handling capability: Suitable for foreground sound, making it perfect for presentations and events.
• Selectable power taps: Offers versatility with power settings via a front-mounted control for tailored audio performance.
• Power taps (in watts): 32, 16, 8, 4, 2, and 1 for 70V; 32, 16, 8, 4, and 2 for 100V, allowing for compatibility with various systems.
• 16-ohm input: Facilitates non-transformer, multi-speaker systems, selectable via the tap selector switch for convenience.
• Compounded rubber surround: Combined with polypropylene and polycarbonate drivers for long-lasting performance and durability.
• Easy wiring: Features a plug-in connector for straightforward installation.
• Integral swing-out clamps: Simplifies installation, ensuring a secure fit in ceilings.
• Connector with loop-through terminals: Allows for easy connection of additional speakers.
• Seismic cable attachment point: Provides safety options for installation in various environments.
• Input terminal cover: Equipped with knockouts and a safety eyelet for connection protection.
• Attractive steel grille assembly: Contemporary design with fine perforations enhances aesthetics while maintaining functionality.
• UL Listed: Complies with UL Standard 60065 for safety in the US and Canada.
• Independently tested: Meets requirements of UL-2043, ensuring reliability and safety (report available).

Bogen HFCS1LPB Detailed Specifications
