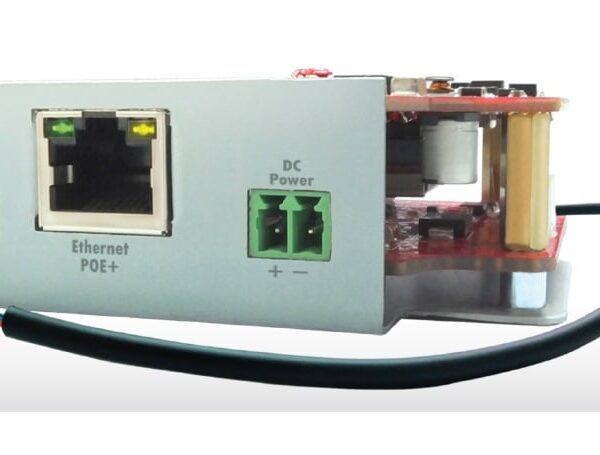

Bogen IPSM IP Speaker Module

This adaptable IP module can convert a standard low impedance speaker, whether it is ceiling, cabinet or horn, to make it IP addressable and powered via Ethernet. Allowing an additional four standard low impedance speakers to be connected into one IP IPSM Module means that providing each speaker doesn’t need to be individually addressable, the IP functionality cost can be effectively spread across 3-4 speakers, as opposed to one. This module also comes with a built-in microphone input for hands-free intercom and can be controlled and monitored through your web browser interface which makes managing the most complex environments even simpler.

Features

• Support PoE+: Allows for power over Ethernet, simplifying deployment by eliminating the need for additional power sources.
• Standard RJ45 interface: Ensures compatibility with standard networking equipment, facilitating easy integration.
• Cost effective installation: Single cable deployment minimizes installation time and costs.
• Web browser management: Easily controlled and monitored through a web interface, simplifying operation in complex environments.
• Superior audio quality: Full DSP system provides enhanced audio performance for various applications.
• Built-in microphone input: Supports hands-free duplex intercom functionality for easy communication.
• IP-based streaming: Enables music streaming, routing, paging, and control over LAN/WAN for versatile usage.
• Paging with priority management: Ensures important messages are delivered first, enhancing communication efficiency.
• Third-party integration: Compatible with TERRACOM system and IP-PBX via SIP protocol for expanded functionality.
• TERRACOM system support: Allows for I/O expansion, increasing system versatility.
• Audio codec support: Compatible with G.711, G.722, WAV, and MP3 formats for flexibility in audio playback.
• Multiple control inputs: Features 3 control inputs, 1 contact output, clock module interface, and reserved USB interface for future expansion.

Bogen IPSM IP Speaker Module Specifications
