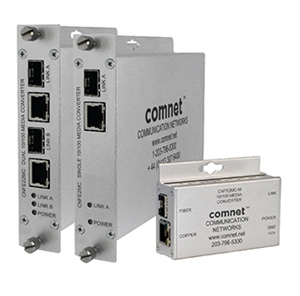

The Comnet CNFE2MCAC/M is a compact 10/100 Mbps Ethernet media converter that provides reliable data transmission over optical fiber. This versatile device features user-selectable SFP options for enhanced flexibility, allowing it to transmit a single channel of Ethernet data or two independent channels in one unit. Its rugged design ensures optimal performance even in extreme temperatures, making it ideal for various applications.
Comnet CNFE2MCAC/M Camera Features
Features
- 10/100 Mbps Ethernet: Supports 10/100 BASE-T/TX electrical port and 100 BASE-FX optical port for versatile connectivity.
- Auto-Negotiation: Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data, enhancing compatibility with different devices.
- Full Duplex Optical Port: Optical port supports 100 Mbps full duplex data, ensuring efficient data transmission.
- MDI/MDI-X Crossover: Automatic MDI/MDI-X crossover capability simplifies connectivity by eliminating the need for crossover cables.
- Long Distance Support: Distances up to 80 km can be achieved with optional SFPs, allowing for extensive network coverage.
- Environmental Compliance: Designed to meet NEMA TS-1/TS-2 and Caltrans specifications, ensuring reliable operation in harsh conditions.
- Interchangeable SFP Modules: Uses interchangeable SFP modules for different fiber types, distances, and connectors, providing flexibility for various applications.
- Voltage Transient Protection: Equipped with voltage transient protection on all power and signal input/output lines to safeguard against surges.
- No In-field Adjustments: No in-field optical adjustments required, simplifying installation and maintenance.
- LED Indicators: LED indicators confirm equipment operating status for quick troubleshooting.
- IEEE 802.3 Compliance: Fully compliant with IEEE 802.3 standards, ensuring compatibility with modern Ethernet networks.
Comnet CNFE2MCAC/M Detailed Specifications
| Feature | Details |
| Model | CNFE2MCAC/M |
| Data Rate | 10/100 Mbps |
| Electrical Port | 10/100 BASE-T/TX |
| Optical Port | 100 BASE-FX |
| Distance | Up to 80 km with optional SFPs |
| Operating Temperature | Environmentally hardened |
| Dimensions | Compact, wall/rack/DIN-rail mountable |
| Compliance | NEMA TS-1/TS-2, Caltrans |
| Protection | Voltage transient protection |
| Installation | No in-field optical adjustments required |
| Indicators | LED status indicators |
| Standards Compliance | IEEE 802.3 |
