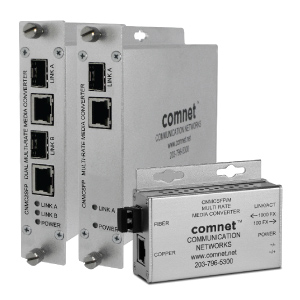

Comnet CNMCSFPPoE Mini 10/100/1000Mbps Ethernet Media Converter with IEEE 802.3at 30W PoE+

The Comnet electrical-to-optical Ethernet media converters accept a 10/100 or 1000 Mbps electrical input and converts this to a 100 or 1000 Mbps optical
output (selected by a dip switch) and the 100/1000 Mbps optical input back to the 10/100/1000 Mbps electrical output. “Auto-Negotiating” is supported on the copper
interface side. This devices use either one or two optical fibers, depending upon the selection of sold-separately SFP† optical module. A PoE model, Meets the IEE802.3at standard and provides 30 watts of PoE+ power.

Features

• Full-duplex transmission of 10/100/1000 Mbps Ethernet
  – 10/100/1000BASE-TX electrical port
  – 1000BASE-FX or 100BASE-FX optical port when used with suitable ComNet SFPs
• IEEE 802.3 compliant
• 10/100/1000 BASE-TX port supports auto-negotiation and automatic MDI/MDI-X crossover for full and half-duplex operation
• Uses customer-installed ComNet SFPs for compatibility with a wide range of optical fibers, optical connector types, and optical transmission distances of up to 120 km
• Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments (-40º to +75ºC ambient). Fully compliant with the environmental requirements of NEMA TS-2 for Traffic Signal Control Equipment
• Voltage transient protection on all power and signal input/ output line provide protection from voltage surges and other transient events
• Mini-package size allows the unit to be installed in those locations where space is at a premium
• Supports Jumbo Frames up to 10K Bytes for streaming video applications
• Bi-color LED status indicators confirm operating status
• Hot-swappable rack modules
• Made in the U.S.A
