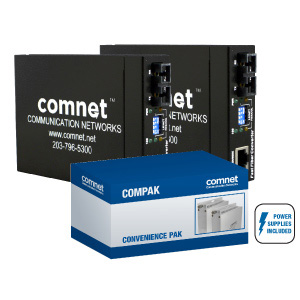

The ComNet™ CWFE2SC(M,S)2 Ethernet media converters are designed to transmit and receive 10/100 Mbps data over multimode or single mode optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate. These media converters are commercial grade for light industrial use.
Features
- Commercial Grade
- 10/100 Mbps Ethernet
- 10/100 BASE-T/TX electrical port
- 100 BASE-FX optical port
- Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
- Optical port supports 100 Mbps full duplex data
- Automatic MDI/MDI-X crossover
- Distances up to: 3 km (2 miles) Multimode
- Transparent to data encoding/compatible with major data protocols
- Ambient operating temperature range: 0º – 50ºC
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- No in-field optical adjustments required
- LED Indicators
- IEEE 802.3 compliant
- APPLICATIONS
- 10/100 Mbps Ethernet Media Converter
- High Speed Computer Links
