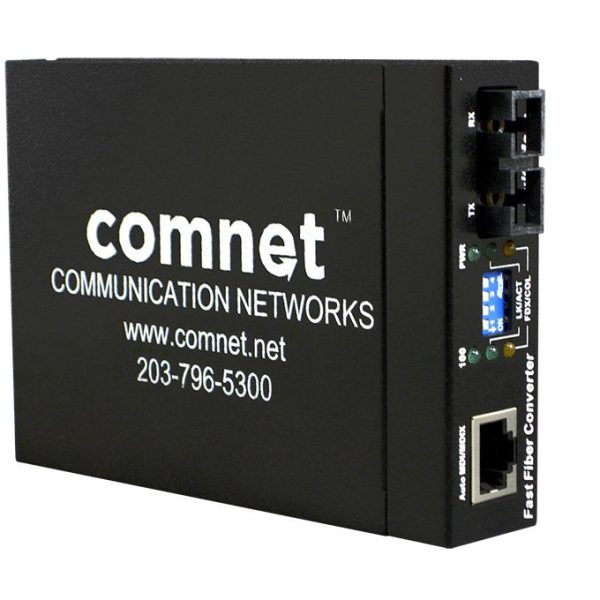

Comnet CWFE2SCM2 10/100 Mbps Ethernet (1310 nm)

The ComNet™ CWFE2SCM2 2 Ethernet media converters are designed to transmit and receive 10/100 Mbps data over multimode optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate. These media converters are commercial grade for light industrial use.

Features

• Commercial Grade
• 10/100 Mbps Ethernet
• Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
• Optical port supports 100 Mbps full duplex data
• Automatic MDI/MDI-X crossover
• Distances up to: 3 km (2 miles) Multimode, 30 km (18.6 miles) Single Mode
• Transparent to data encoding/compatible with major data protocols
• Ambient operating temperature range: 0º – 50ºC
• Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
• No in-field optical adjustments required
• LED Indicators
• IEEE 802.3 compliant
