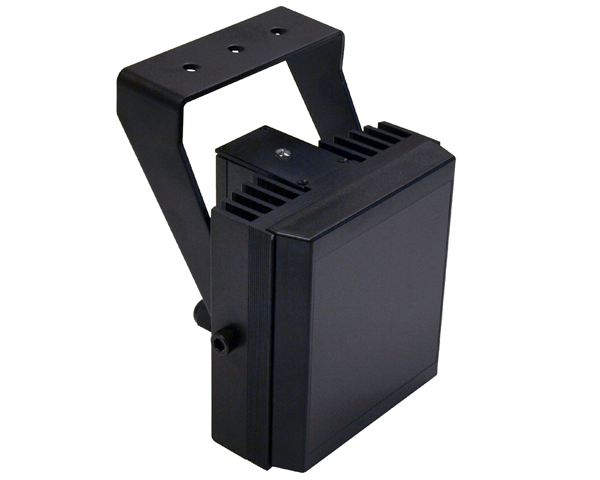

The Ganz IRL-M3 Outdoor 30-degree IR Illuminator is a robust solution designed for security applications, providing outstanding performance with its efficient LED technology. Its vandal-resistant and all-weather features ensure reliability in various conditions, making it ideal for outdoor use. With a long range and low power consumption, this illuminator is perfect for enhancing security systems.
Ganz IRL-M3 Outdoor IR Illuminator Features
- 16 IR LEDs: Provide up to 312 ft. range, ensuring effective illumination over a significant distance.
- Beam Angles: Available in 10°, 30°, 60° & 120° options, allowing for customizable coverage to suit specific security needs.
- 850nm Wavelength: Ensures optimal infrared visibility for night-time surveillance without disturbing wildlife or human activity.
- Automatic Photocell: Activates the illuminator based on ambient light conditions, enhancing energy efficiency and automation.
- 12VDC / 24VAC Input: Compatible with standard power supplies for easy integration into existing systems.
- IP67 Rating: Guarantees all-weather outdoor performance, protecting against dust and water ingress.
- ProPak & iPak Availability: Option for pre-installed packages simplifies installation and setup.
Detailed Specifications for Ganz IRL-M3
| Feature | Details |
| LED Count | 16 IR LEDs |
| Range | Up to 312 ft. |
| Beam Angles | 10°, 30°, 60°, 120° |
| Wavelength | 850nm |
| Photocell | Automatic |
| Input Voltage | 12VDC / 24VAC |
| Weather Rating | IP67 |
| Installation Options | Available in ProPak & iPak |
