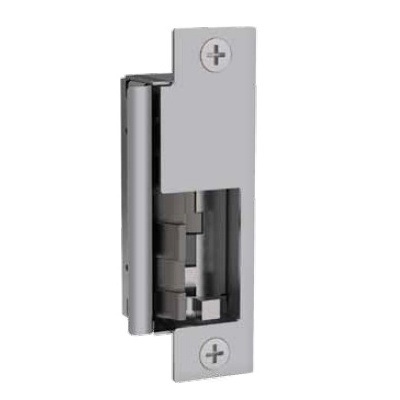

HES 8500-613-LBSM Electric Strike, Bronze Toned, Latchbolt Strike Monitor

The 8500-613-LBSM from HES is an electric strike, bronze toned, Latchbolt Strike monitor. The 8500 series is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with mortise locksets without a deadbolt. Designed for fast, convenient installation, the 8500 installs with little or no modification to the frame. Simply remove the existing strike plate, remove the dust box and install. Its strength is derived from a unique keeper pin locking design, enabling the 8500 to exceed Grade-1 ratings. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8500 accommodates mortise latchbolts up to 3/4″ throw.

HES 8500-613-LBSM Electric Strike Features

• No cutting of the face of the frame: Ensures quick and easy installation without damaging the door frame.
• Stainless steel construction: Provides durability and resistance to corrosion, ensuring a long product lifespan.
• Tamper resistant: Enhances security by preventing unauthorized access or manipulation.
• Static strength 1,500 lbs: Offers robust resistance to forced entry, enhancing security.
• Dynamic strength 70 ft-lbs: Ensures reliability under stress, maintaining functionality during use.
• Endurance 500,000 cycles: Guarantees long-lasting performance and reliability over time.
• Field selectable fail safe / fail secure: Provides flexibility in security options based on user needs.
• Dual voltage 12 or 24 VDC/VAC: Compatibility with various power systems allows for versatile installation.
• Non-handed: Simplifies installation as it can be used on both left and right-hand doors.
• Metal or Wood Frame: Versatile enough to be installed in different types of door frames.
• Internally mounted solenoid: Adds to the strike’s sleek design while protecting the mechanism.
• Accommodates 3/4” mortise latchbolts: Ensures compatibility with standard mortise locks for ease of use.
• Strike body depth 1-5/16”: Compact design that fits into tight spaces for easy installation.
• Plug-in connector: Facilitates quick wiring and reduces installation time.
• Full pocket shims for horizontal adjustment: Allows for precise fitting, ensuring optimal performance.
