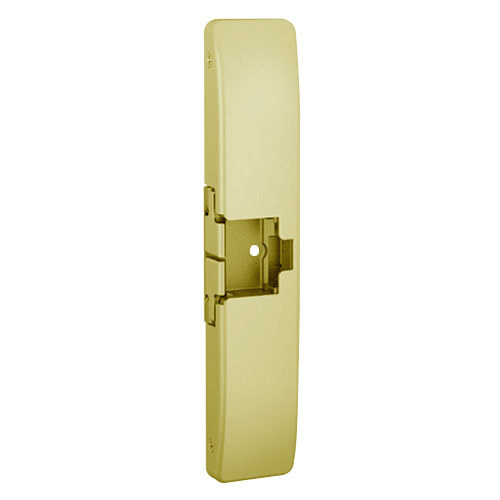

The 9700-606 from HES is a windstorm and fire rated square bolt solution surface mounted electric strike in satin brass. The 9700 Series is a heavy duty, surface mounted electric strike designed to accommodate Corbin Russwin SecureBolt and Yale SquareBolt exit devices. All components are completely encased within its 3/4″ thick stainless steel housing, so no cutting on the frame is required for installation. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.
Features
- Separate base and decorative cover: Allows for easy adjustments during installation or maintenance.
- Stainless steel construction: Ensures durability and resistance to corrosion, extending the product lifespan.
- Tamper resistant: Provides enhanced security against unauthorized access and tampering.
- Static strength 2,500 lbs: Guarantees robust security to withstand forced entry attempts.
- Dynamic strength 120 ft-lbs: Demonstrates the strike’s ability to handle impact and stress effectively.
- Endurance 1,000,000 cycles: Offers exceptional reliability for high-traffic applications, minimizing maintenance needs.
- Field selectable fail secure/fail safe: Provides flexibility in operation modes to meet specific security needs.
- Dual voltage 12 or 24 VDC: Accommodates various power supply configurations for versatility in installation.
- Horizontal adjustment: Facilitates precise alignment with exit devices for optimal performance.
- Non-handed: Simplifies installation as it can be used on both left and right-hand doors.
- Internally mounted solenoid: Enhances the aesthetic appeal and reduces the risk of damage to the mechanism.
HES 9700-606 Detailed Specifications
| Product Type | Electric Strike |
| Material | Stainless Steel |
| Finish | Satin Brass |
| Static Strength | 2,500 lbs |
| Dynamic Strength | 120 ft-lbs |
| Endurance | 1,000,000 cycles |
| Operation | Field selectable fail secure/fail safe |
| Voltage | 12 or 24 VDC |
| Adjustment | Horizontal |
| Handing | Non-handed |
| Solenoid | Internally mounted |
