ICC ICMPPTF244 Patch Panel Features

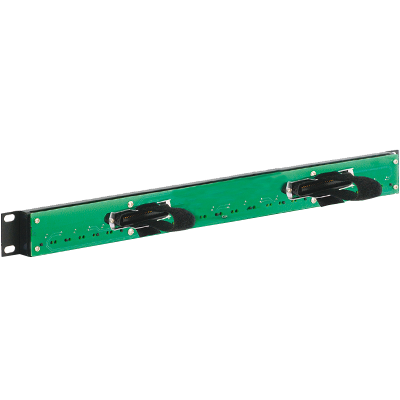

24-port 6P4C (RJ-11) with two female Telcos patch panel consist of 4-wires RJ-11 USOC wiring scheme is ideal for KSU or PBX phone systems. The active pins are pins #3, #4 and #2, #5; patch panel connects to 24 RJ-11 patch cords on the front and link phone system with 50-pin Telco connectors on the back. Each 50-pin female Telco connector comes with hook and loop tie that is seated in a socket to secure 25-pair cable for either 90 degree or 180 degree cable exits. Each patch panel also features front write-on labeling area for port identification.
Features
- Rack Mounted: 6-position 4-conductor (RJ-11) Telco patch panel provides voice connectivity applications
- Integrated Connectors: Comes with two female 50-pin Telco connectors for easy connectivity
- Standard Compatibility: Designed to fit all standard 19″ racks or cabinets for versatile installation
- Space Efficient: Occupies 1 rack mount space (RMS) for efficient use of rack space
ICC ICMPPTF244 Patch Panel Detailed Specifications
| Feature | Details |
| Type | 24-Port 6P4C (RJ-11) Patch Panel |
| Connector Type | 2 Female 50-Pin Telco Connectors |
| Wiring Scheme | 4-Wires RJ-11 USOC |
| Active Pins | 3, 4, 2, 5 |
| Mounting Orientation | Designed for 1 RMS rack installation |
| Compatibility | Fits all standard 19″ racks or cabinets |
| Labeling | Front write-on labeling area for port identification |
| Additional Features | Hook and loop tie included for cable management |
