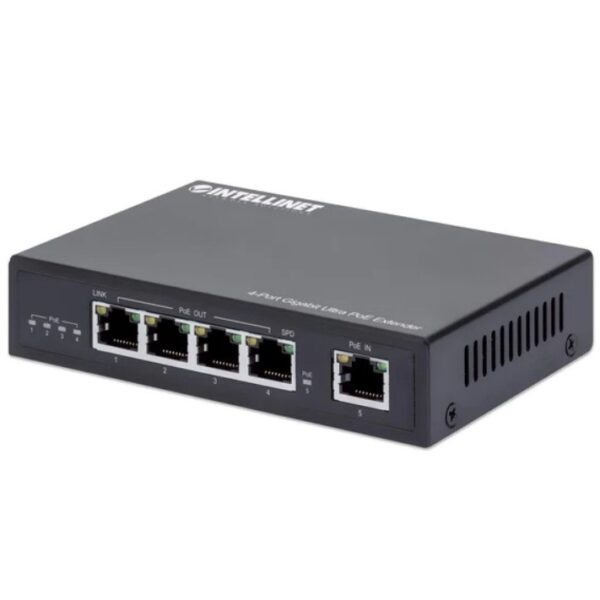

Intellinet 561617 IPE-4G90 4-Port Gigabit Ultra PoE Extender

The Intellinet 561617 IPE-4G90 4-Port Gigabit Ultra PoE Extender is designed to enhance your network’s reach by doubling the distance of a Power over Ethernet connection. With the ability to power and connect multiple devices seamlessly, it eliminates the need for additional power sources, making installation and operation both cost-effective and efficient.

Intellinet 561617 IPE-4G90 Extended Connectivity Features

• Extended Range: Doubles the maximum connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.), ensuring broader coverage.
• Multi-Device Support: Connects and powers four PoE devices such as network cameras, wireless access points, or VoIP phones from a single PoE injector or switch port.
• High Power Output: Delivers up to 90 W total to four connected devices, with a maximum of 30 W per port, accommodating high-power devices.
• Fast Data Rates: Supports 10/100/1000 Mbps data rates for reliable and fast network performance.
• Cost Efficiency: Saves time and money by utilizing existing network cables to deliver data and power simultaneously.
• Device Compatibility: Automatically detects and powers IEEE 802.3at/af-compliant devices, ensuring safe operations.
• Protection Features: Includes short-circuit, overload, and high-voltage protection for reliable operation.
• Surge Protection: Grounding point to safeguard equipment from external electrical surges.
• No Additional Power Supply Needed: Draws power directly from the PoE input, simplifying installation.
• Switch Functionality: Functions as a PoE-powered 5-Port Gigabit Switch with PoE Passthrough for added versatility.
• Compact Design: Fanless design allows for silent operation, while the compact metal case ensures durability.
• NDAA Compliance: Fully compliant with NDAA standards for peace of mind.

Intellinet 561617 IPE-4G90 Detailed Specifications
