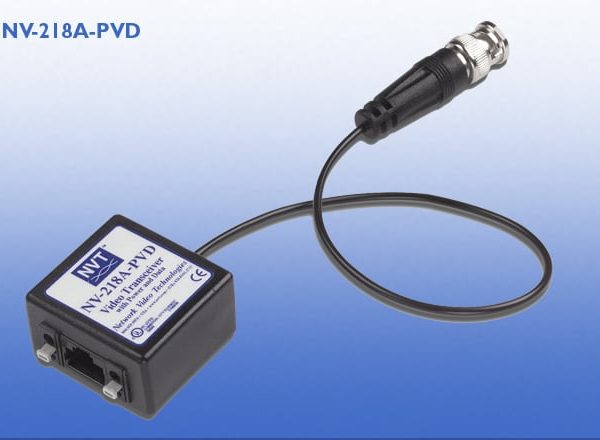

NVT NV-218A-PVD PVD Power Supply Passive Receiver

The NVT NV-218A-PVD allows video, power and data to be routed over a UTP cable. For versatile connection options, it features a UTP, RJ-45 and a “Press-Fit” terminal bloc. Its compact profile along with a male BNC port at the end of a 9″ pigtail cable provide easy connection to the camera, even inside a dome. Along with color and B/W video, this unit will also transmit Coaxitron signals over the same UTP cable, eliminating the need to run a separate control cable. A built-in transient protection function allows multiple signals to share the same cable without causing electrical interference problems.

Features

• Transmits power, video and Data (PVD) over a single UTP cable
• Up to 3000′ (1km) when used with an active receiver or hub
• Supports Coaxitron (up the coax) control up to 750′ (225 m)
• BNC port with 9″ pigtail cable for in-camera mounting in most dome cameras
• Compatible with NV-704J-PVD and NV-716J-PVD for better cable management with IDF
• Built-in transient and interference protection
• Up To 3000′ (1km)
• Supports Up The Coax
• Built-In Transient Protection
