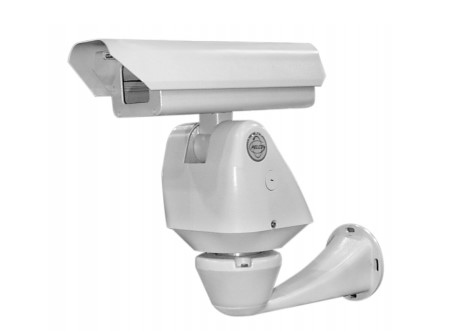

The ES3012 from Pelco is an integrated positioning system that combines a pan/tilt mechanism, enclosure, and receiver into a single compact unit, simplifying installation and operation. With user-friendly on-screen menus, this system is easy to configure, making it ideal for various surveillance applications. Available in standard and ImagePak® versions, the system supports a wide range of camera options while ensuring durability with features like built-in heating, defogging, and robust construction to withstand harsh weather conditions.
Pelco ES3012 Key Features
- Integrated Receiver, Pan/Tilt, and Housing with No Exposed Cabling: Provides a clean installation and reduces the risk of damage to cables.
- Optional ImagePak® Integrated Optics Package: Offers custom camera and lens combinations for enhanced surveillance flexibility.
- Quick and Simple Electrical Connections: Facilitates faster setup and minimizes labor costs.
- Variable Speed Advanced Motor Control Technology: Ensures smooth operation and precise positioning, enhancing monitoring capabilities.
- 360° Continuous Pan Rotation: Allows for complete surveillance coverage without physical obstruction.
- Zone Blanking Allows up to 8 Zones: Configurable zones can be set to output blank video, safeguarding privacy and sensitive areas.
- Operational in 90 mph Wind Conditions: Can withstand wind velocity up to 130 mph, ensuring reliability in extreme weather.
- Pan Preset Speed of 100° Per Second: Maintains quick response time in 50 mph winds, enhancing tracking efficiency.
- Tilt Range of +33° to 83° from Horizontal: Expands monitoring capabilities by allowing a wide range of view angles.
- Preset Positioning: Enables quick orientation to predefined locations for rapid response.
- Designed for Minimal Maintenance: No gears to adjust means reduced maintenance costs and downtime.
- Lightweight Aluminum Construction: Provides durability without adding unnecessary weight, making installation easier.
- Meets NEMA Type 4X and IP66 Standards: Ensures protection against water and dust, suitable for outdoor use.
Detailed Specifications
| Feature | Details |
|---|---|
| Model | ES3012 |
| Power Source | 24 VAC or selectable 120/230 VAC |
| Camera Compatibility | Accepts any 24 VAC camera and lens combination up to 12.10″ L x 3.45″ W x 3.17″ H |
| Wind Resistance | Operational in 90 mph; withstands up to 130 mph |
| Pan Speed | Up to 100° per second in 50 mph winds |
| Tilt Range | +33° to 83° from horizontal |
| Construction Material | Lightweight aluminum |
| Protection Rating | NEMA Type 4X, IP66 |
| Maintenance | Minimal; no gears to adjust |
