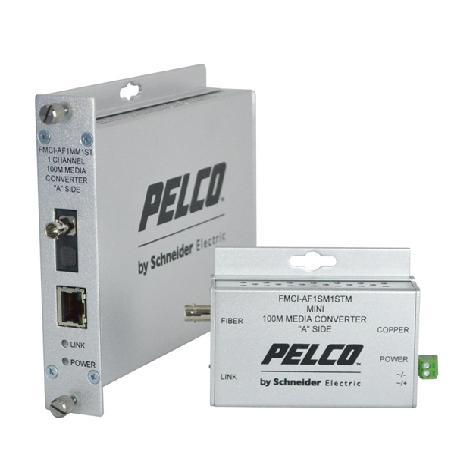

Pelco FMCI-AF1MM1STM 1 Channel Multi-Mode Fiber Media Converter-A, ST Connector, Mini

The FMCI-AF1MM1STM Ethernet media converter by Pelco is engineered for seamless transmission and reception of 10/100 Mbps data over multimode optical fiber using ST connectors. This robust device features autonegotiation capabilities, ensuring optimal Ethernet rates without manual adjustments. Built to withstand extreme environments, it includes LED indicators for real-time monitoring of operational status, making it an ideal solution for critical applications. Additionally, it supports DIN-rail mounting for versatile installation options.

Pelco FMCI-AF1MM1STM Features

• 10/100 Mbps Ethernet: Supports both 10Base-T and 100Base-TX electrical ports along with a 100Base-FX optical port for versatile connectivity.
• Electrical Port Autonegotiation: Automatically adjusts to either 10 Mbps or 100 Mbps, ensuring full-duplex or half-duplex data transmission as needed.
• 100 Mbps Full-Duplex Optical Port: Delivers high-speed data transfer, enhancing performance in data-intensive applications.
• Automatic MDI/MDI-X Operation: Simplifies installations by eliminating the need for crossover cables.
• Data Encoding Compatibility: Transparent to data encoding, ensuring compatibility with major data protocols for widespread application use.
• NEMA TS 1/TS 2 Compliance: Designed to meet rigorous environmental standards for traffic signal control equipment, ensuring reliability in harsh conditions.
• ST Optical Connectors: Provides reliable and straightforward fiber optic connections.
• 1-Fiber Design: Efficiently utilizes a single fiber for data transmission, optimizing resource usage.
• Flexible Power Options: Can operate on AC or DC power, accommodating various installation requirements.
• Voltage Transient Protection: Safeguards against power surges and voltage transients, enhancing device longevity and reliability.
• No Performance Adjustments Required: Ensures hassle-free operation without the need for manual tuning or configuration.
• LED Status Indicators: Allows easy monitoring of critical and normal operating parameters, facilitating maintenance and troubleshooting.
• Hot-Swappable Standard Size: Easily replaceable in a card cage without disrupting other operations, enhancing system flexibility.
• IEEE 802.3 Standards Compliance: Guarantees compatibility with industry standards for connectivity and performance.

Pelco FMCI-AF1MM1STM Detailed Specifications
