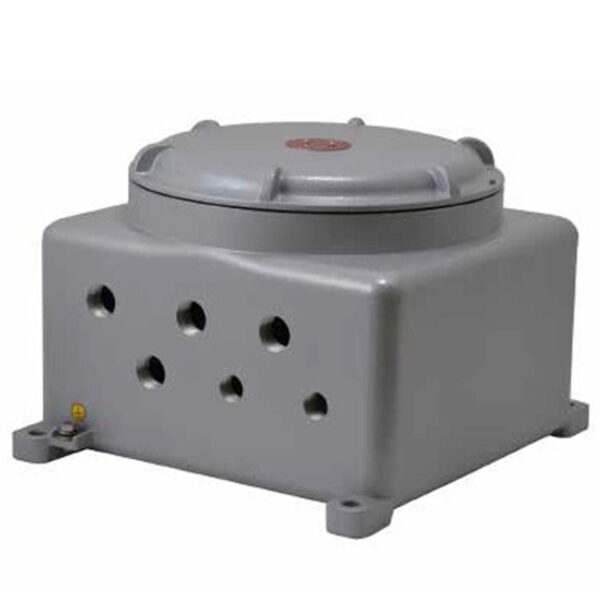

Pelco MBA3S5A Explosion-proof Communication Box – Aluminium – 120VAC

MAXIMUS MBA is much more than just a simple explosion-proof junction box. In fact it is defined as a communication box equipped with everything needed to connect one or more IP or analog cameras. MAXIMUS MBA has been designed to integrate and work exclusively with the MAXIMUS range of Videotec products.

Features

• Certifications for use in Zones 1 and 2, IIC T5 or T6 Group (Gas) and in Zones 21 and 22, IIIC T100ºC or T85ºC Group (Dust)
• Copper-free marine grade aluminium construction, RAL 9006 external epoxy paint
• Designed to work exclusively with Videotec products and accessories
• Plenty of space for cables and connections
• Input voltages available: 230Vac, 120Vac, 24Vac
• Extended/Industrial range electronics
• Operating temperature: from -40ºC (-40ºF) up to +70ºC (158ºF)
• IP66
