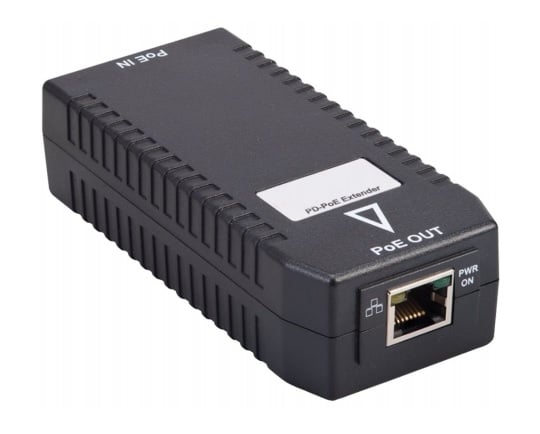

Pelco POE130-XT Single Port PoE Gigabit Extender

The POE130-XT from Pelco is a Single Port PoE Gigabit Extender designed to meet the demanding data rate and power requirements of IP cameras with high-quality streaming video capabilities. With the ability to extend Ethernet and PoE up to 400 meters when cascading extenders, this device ensures flexibility in IP camera installations while maintaining optimal performance and power delivery.

Pelco POE130-XT Features

• Extend PoE Installation Range: Increase your installation range by an additional 100 meters, allowing for more flexible camera placements.
• Data Rate Support: Supports 10/100/1000 Mbps data rates, ensuring high-speed data transfer for optimal performance.
• Power Level Compatibility: Provides 802.3af power levels when powered by any 802.3at source, ensuring compatibility with various devices.
• Enhanced Power Delivery: Provides 802.3at power levels when powered by PD-9601G/AC midspans, allowing for higher power demands.
• Cost-Effective Installation: Eliminates the need for local power sources, reducing installation costs and complexity.
• Plug and Play Installation: Simple installation with no configuration needed, allowing for quick deployment.
• Signature Resistance Detection: Fully compliant with 25K signature resistance detection (IEEE802.3at and IEEE802.3af), enhancing safety and compatibility.
• Boost Circuit: Includes a boost circuit to compensate for wire drops, ensuring consistent power delivery.
• Cascaded Extenders: Extends Ethernet up to 400 meters (1640.42 feet) when using cascaded PoE extenders, providing extensive coverage.

Pelco POE130-XT Detailed Specifications
