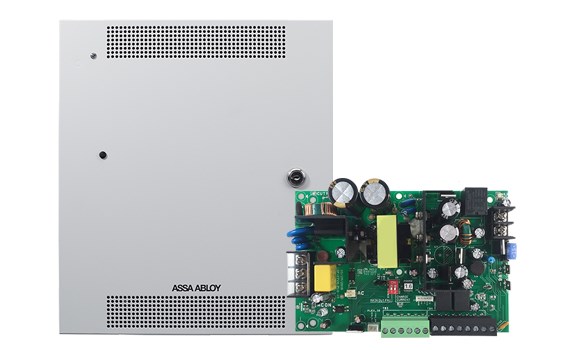

Securitron AQL4-2B100D8E1 Power Supply 4/3A DV with Enclosure, (2) B100, (1) D8

The AQL4-2B100D8E1 from Securitron is a power supply 4/3A DV with enclosure, (2) B100, (1) D8. The Securitron AQL4 Series of switching power supplies are dual voltage, UL listed plus multi-voltage and network monitoring ready. These units are field selectable with a dedicated fast battery charger. They provide 4 Amp @ 12 VDC or 3 Amp at 24 VDC and are expandable up to 16 outputs.

Securitron AQL4-2B100D8E1 Power Supply Features

• Low Battery Cutoff: Protects batteries from deep discharge, ensuring longevity and reliability.
• Dedicated Fast Charger: Prolongs battery life, reducing maintenance costs and downtime.
• Enhanced Surge Immunity: Provides input/output protection to safeguard against electrical surges.
• LockSafe Technology: Keeps locks cooler by using a separate battery charging circuit, enhancing performance.
• OutSmart Technology: Dual-color LED visual notification prevents incorrect voltage application (Green: 12 V | Blue: 24 V).
• Class 2 Auxiliary Output: Power limited for safety, suitable for additional devices.
• Mix and Match UL Listing: Flexible configuration options for various installations.
• Instant Auto-Switch: Automatically switches to battery on AC loss, ensuring continuous operation.
• Expandable Outputs: Supports up to 16 outputs in the standard enclosure for scalability.
• Multi-Voltage Capability: Compatible with Securitron B100 Module for diverse voltage needs.
• Integrated Fire Alarm Interface (FAI): Allows for main output shutdown or disconnect on a per output basis with R8 output module.
• Network Ready: Can be upgraded with the optional Netlink module for advanced monitoring.
• MagnaCare Warranty: Lifetime replacement with no-fault, no questions asked policy, ensuring peace of mind.

Securitron AQL4-2B100D8E1 Detailed Specifications
