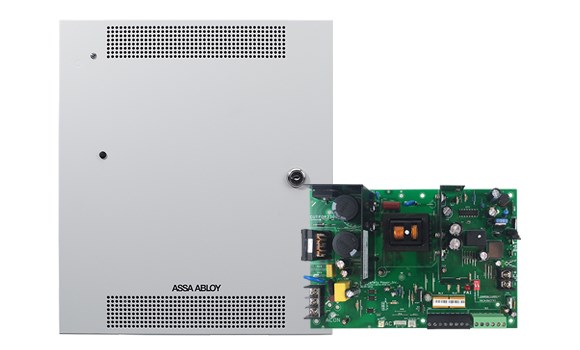

Securitron AQL6-B100D8E1 Power Supply 6A DV with Enclosure, (1) B100, (1) D8

The AQL6-B100D8E1 from Securitron is a power supply 6A DV with enclosure, (1) B100, (1) D8. The Securitron AQL6 Series of switching power supplies are dual voltage, UL listed plus multi-voltage and network monitoring ready. These units are field selectable with a dedicated fast battery charger. They provide 6 Amp @ 12 or 24 VDC and are expandable up to 16 outputs.

Features

• Low battery cutoff: Protects batteries from deep discharge, ensuring longevity and reliability.
• Dedicated fast charger: Prolongs battery life by quickly charging batteries without overloading.
• Enhanced surge immunity: Provides input/output protection to safeguard against electrical surges.
• LockSafe technology: Keeps locks cooler with a dedicated battery charging circuit, enhancing lock performance.
• OutSmart technology: Dual-color LED visual notification prevents incorrect voltage application: (Green: 12 V | Blue: 24 V).
• Auxiliary output: Class 2, power limited for added safety and compliance.
• Mix and match UL Listing: Allows flexibility in configurations to meet various project needs.
• Instant auto-switch to battery: Ensures reliable backup during AC loss for uninterrupted operation.
• Expandable output: Supports up to 16 outputs in the standard enclosure, accommodating larger systems.
• Multi-voltage capability: Works seamlessly with the Securitron B100 Module for versatile applications.
• Integrated Fire Alarm Interface (FAI): Allows for main output shutdown or disconnect on a per output basis when using an R8 output module.
• Network ready: Compatible with an optional Netlink module for advanced monitoring and control.
• MagnaCare warranty: Offers a lifetime replacement with no-fault, no questions asked warranty, ensuring peace of mind.

Securitron AQL6-B100D8E1 Detailed Specifications
