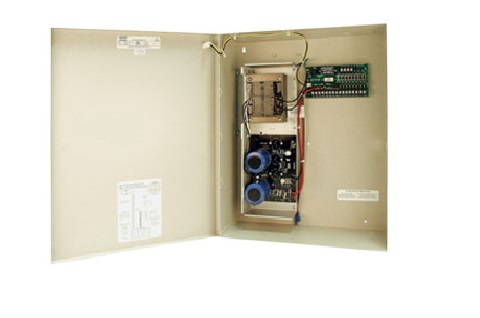

The Securitron BPS-24-6 Power Supply is designed to deliver reliable 24 VDC power with a robust 6A output. Ideal for security systems, this power supply features integral battery charging capability, ensuring continuous operation even during line voltage failures. With multiple outputs and circuit protection, it is perfect for various applications requiring dependable power management.
Securitron BPS-24-6 Power Supply Features
- UL Class 2 Listed: Ensures compliance with safety standards for reliable operation.
- Integral Battery Charging: Keeps sealed lead acid gel/cell batteries fully charged during line voltage failures, enhancing system reliability.
- Fused Line Voltage Input with Eight DC Outputs: Each output is protected by a UL Class 2 Listed automatic circuit breaker, preventing overloads and ensuring safety.
- Individual Circuit Control: Each circuit can be activated or deactivated via a slide switch, with LED indicators for easy power status monitoring.
- Short Circuit Protection: In case of a DC short, only the affected zone is impacted, allowing uninterrupted power to other stations.
- Power Supply Monitor Accessory: Monitors all key functions of the BPS and reports issues, including battery status, for proactive maintenance.
- Fire Alarm Interface: Standard interface for integration with fire alarm systems, enhancing overall safety.
Securitron BPS-24-6 Detailed Specifications
| Power Output | 24 VDC, 6A |
| Input Voltage | AC Voltage, UL Class 2 |
| Battery Charging Capability | Yes, for sealed lead acid gel/cell |
| Number of Outputs | 8 |
| Circuit Breaker Type | UL Class 2 Listed automatic |
| Individual Circuit Control | Slide switch with LED indicators |
| Short Circuit Containment | Yes, localized power interruption |
| Monitor Accessory | Available for key function reporting |
| Fire Alarm Interface | Standard feature |
