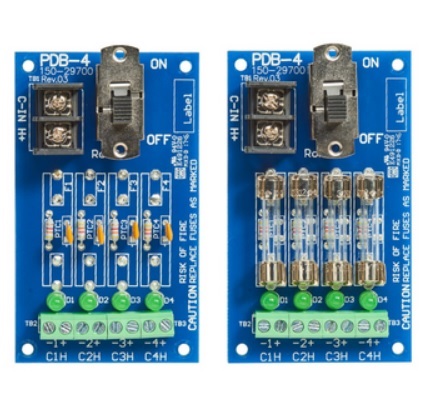

The Securitron PDB-4F1 Power Distribution Board efficiently divides the primary AC or DC output from a power supply into four independently fused circuits, ensuring safe and reliable operation for your access control and alarm systems. With features like glass fuse protection and reverse polarity protection, this board guarantees optimal performance and enhances the longevity of your equipment.
Securitron PDB-4F1 Power Distribution Board Features
- Converts a single DC Input: Transforms one input into 4 Class 2 rated outputs for enhanced versatility.
- Class 1 wiring requirement: Necessary for “F” denoted models, ensuring compliance with wiring standards.
- 9-28 VDC Operation: Provides a wide voltage range for compatibility with various systems.
- Reverse polarity protection: Safeguards your devices from damage due to incorrect connections.
- Glass fuses protection: Offers reliable circuit protection, minimizing operational risks.
- Output LED indicators: Displays the condition of the outputs for easy monitoring.
- Form C Contacts: Indicates trigger status, facilitating better control and management.
- UL Listed Sub Assembly: Approved for use in Access Control and Burglar Alarm Systems, ensuring safety and reliability.
Securitron PDB-4F1 Detailed Specifications
| Input Voltage | 9-28 VDC |
| Output Configuration | 4 Class 2 rated outputs |
| Fuse Type | Glass fuses |
| Protection Features | Reverse polarity protection |
| LED Indicators | Output condition indicators |
| Contact Type | Form C contacts |
| UL Listing | UL Listed for Access Control and Burglar Alarm Systems |
