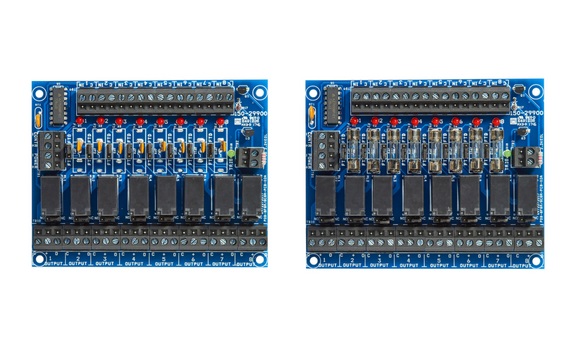

Securitron PDB-8C8R2 2 Amp, 8 PTC Polyswitch Output with Relays, Fire Trigger

The PDB-8C8R2 from Securitron is a versatile, compact way to distribute and control power for Access Control Systems with Fire Alarm Interface. This Access Control board is an 8 position power distribution board with individual relays with input control for each output.

Securitron PDB-8C8R2 Features

• 8 Heavy duty Relays: Each relay comes with individual inputs and status LEDs for real-time monitoring and control.
• Versatile Relay Inputs: Each relay input can be activated from low current open collector, normally closed, or normally open switch, offering flexibility in installation.
• EOL Fire Interface: The end-of-line resistor fire interface master trigger de-energizes all enabled output relays, enhancing safety during emergencies.
• Universal Power Input: Accepts 12 – 28VDC power input (nominal 12-24VDC), making it compatible with various systems.
• Class 2 Power Limited: The 8C8R is designed with class 2 power limitations, ensuring safe operation.
• Wiring Requirements: Class 1 wiring is necessary for 8F8R unless powered by specific UL-listed power supplies, ensuring compliance with safety standards.
• PTC Circuit Breakers: Available with PTC circuit breakers for added protection against overloads.
• Individual Output Configuration: Each output can be configured for fire trigger (FT) enabled or disabled, and N/O or N/C options for relay switched output, providing customization based on user needs.
• Protected Outputs: Each output (1-8) features a protected, continuous output and a relay-controlled output, ensuring reliable performance.
• Isolated Power Options: Control power and main lock power can be isolated with separate power supplies at the user’s discretion, offering additional flexibility.
