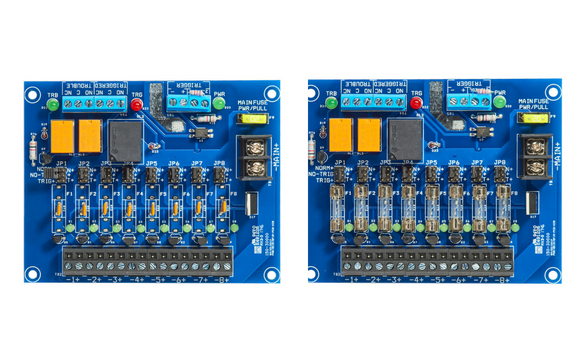

Securitron PDB-8F1R1 Power Distribution 8 Fused Output, 1 Amp with Fire Trigger/Relay

The Securitron PDB-8F1R1 Power Distribution 8 Fused Output, 1 Amp with Fire Trigger/Relay offers a reliable solution for converting a main non-power limited DC power source into 8 power-limited outputs. This versatile system is designed to interface seamlessly with Fire Alarm Control Panels, providing customizable control over each output. With features such as auto-resetting capabilities and clear status indicators, the PDB-8F1R1 enhances both safety and functionality in various applications.

Securitron PDB-8F1R1 Key Features

• 8 Power Limited Outputs: Provides flexibility by allowing each output to be individually controlled to turn ON, OFF, or remain ON when triggered.
• Auto-Resetting Circuit Breakers: Enhances reliability and safety by automatically resetting after a fault condition, minimizing downtime.
• Customizable Trigger Options: Supports voltage or reverse polarity triggering, and N/O or N/C switches with supervised EOL, ensuring compatibility with various systems.
• Clear Trigger and Trouble Indicators: Form C contacts and LED indicators provide immediate visual feedback on the trigger status and any potential issues.
• Wide Operating Voltage Range: Operates with 12-28VDC, nominally 12-24VDC, making it suitable for diverse power system configurations.
• Removable Terminal Blocks: Each output pair features a removable terminal block with a green status LED for easy maintenance and monitoring.
• UL Listed: Certified for access control and burglar alarm systems, ensuring compliance with safety standards.

Securitron PDB-8F1R1 Detailed Specifications
