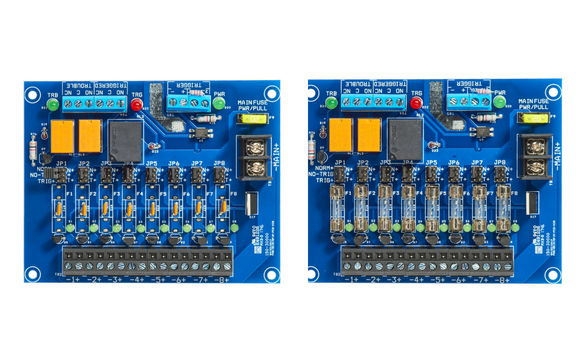

Securitron PDB-8F1R2 Power Distribution 8 Fused Output, 2 Amp with Fire Trigger/Relay

The Securitron PDB-8F1R2 Power Distribution is a highly efficient control interface designed to convert a main non-power limited DC power source into 8 power-limited outputs. With features such as selectable output control, auto-resetting capabilities, and comprehensive status indicators, this unit is perfect for integration with Fire Alarm Control Panels, ensuring reliable operation in critical environments.

Securitron PDB-8F1R2 Power Distribution Features

• 8 Power Limited Outputs: Provides flexibility and safety with auto-resetting capabilities for enhanced system reliability.
• Circuit Breakers: Integrated circuit breakers for model 8C1R ensure protection against overloads, enhancing durability.
• Selectable Output Control: Each output can be configured to turn ON, turn OFF, or remain always ON when triggered, allowing for customized responses to alarms.
• Multiple Trigger Options: Outputs can be triggered using voltage or reverse polarity (optically isolated) as well as N/O or N/C switch with supervised EOL, offering versatile integration options.
• Status Indicators: Form C contacts and LED indicators provide real-time feedback on trigger status, enhancing operational awareness.
• Trouble Indication: Alerts for tripped circuit breakers or blown fuses are indicated by dedicated LEDs, ensuring immediate troubleshooting.
• Wide Operating Voltage: Compatible with 12-28VDC (nominal 12-24VDC), making it adaptable to various power sources.
• Removable Terminal Blocks: Each output pair features a removable terminal block with a green status LED for easy maintenance and monitoring.
• Main Power Indicator: A dedicated green status LED for main power ensures visibility of the system’s operational status.
• UL Listed: This sub-assembly is UL listed for access control and burglar alarm systems, verifying its quality and reliability.

Securitron PDB-8F1R2 Detailed Specifications
