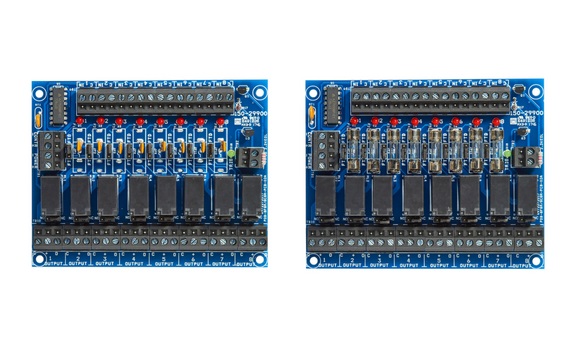

Securitron PDB-8F8R1 1 Amp, 8 Glass Fused Output with Relays, Fire Trigger

The PDB-8F8R1 from Securitron is a versatile, compact way to distribute and control power for Access Control Systems with Fire Alarm Interface. This Access Control board is an 8 position power distribution board with individual relays with input control for each output.

Features

• 8 Heavy duty Relays: Each relay comes with individual inputs and status LED’s, providing clear operational visibility and control.
• Versatile Relay Activation: Relay inputs can be activated from low current open collector, normally closed, or normally open switches, making installation flexible.
• EOL Fire Interface: The End of Line Resistor fire interface master trigger de-energizes all output relays that are enabled, enhancing safety in emergencies.
• Universal Power Input: Accepts 12 – 28VDC power input (nominal 12-24VDC), allowing compatibility with various systems.
• Class 2 Power Limitation: The 8C8R is Class 2 power limited, ensuring safe operation within specified electrical limits.
• Class 1 Wiring Requirement: Class 1 wiring is required for 8F8R unless used with a compliant power supply, ensuring adherence to safety standards.
• Fuse Circuit Breakers: Available with fuse circuit breakers to protect against overload and ensure system reliability.
• Configurable Outputs: Each output can be individually configured for fire trigger (FT) enabled or disabled, and N/O or N/C options for relay switched output.
• Protected Outputs: Each output 1-8 has a protected, continuous output and a relay controlled output, ensuring stable performance.
• Isolated Power Options: Control power and main lock power may be isolated at user’s option, providing enhanced flexibility in installation.

Securitron PDB-8F8R1 Detailed Specifications
