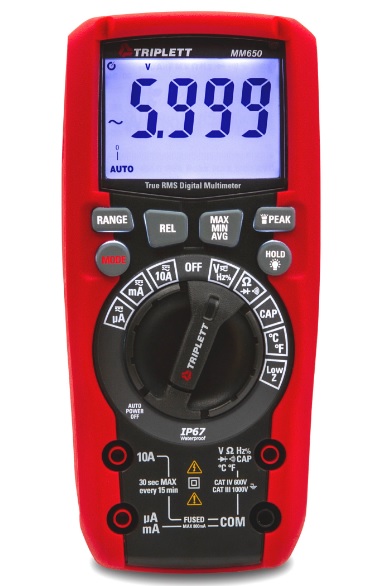

Triplett MM650 CAT IV True RMS Multimeter with LoZ

The Triplett Model MM650 is a 6000 count high performance digital multimeter with True RMS readings to provide better accuracy when measuring non-sinusoidal or noisy waveforms. It offers a large variety of measurement features including AC/DC Voltage, AC/DC Current, AC/DC µA Current, Resistance, Temperature, Frequency, Capacitance, Continuity, and Diode Test. Additional features include a 61-segment analog bargraph, backlit LCD, buttons and switch selector, Lo Z (impedance) mode for identifying ghost voltages, data hold, peak hold, relative mode, and a built-in flashlight. The rubberized over molded housing provides impact and drop resistance in a sleek ergonomic design that is also waterproof (IP67). CAT IV 600V safety rating provides superior resistance to damage from transient over voltages in any demanding industrial settings. The Model MM650 is suited for a variety of industrial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes test leads, temperature probe, (4) AAA batteries, and carrying case.

Triplett MM650 CAT IV True RMS Multimeter Features

• True RMS: Provides better accuracy on non-sinusoidal or noisy waveforms, ensuring reliable measurements.
• Versatile Measurements: Measures AC/DC Voltage and Current, Resistance, Temperature, Capacitance, Frequency, Diode and Continuity for comprehensive testing capabilities.
• μA Current Measurement: Allows for precise low current measurements, ideal for sensitive electronic components.
• Lo Z Mode: Low input impedance mode for ACV/DCV measurements to identify ghost voltages, enhancing safety and accuracy.
• High Performance: 6000 count multimeter with a 61 segment analog bargraph for trend analysis and real-time monitoring.
• Backlit LCD: Facilitates visibility in low light conditions, making it convenient for use in various environments.
• Data Hold Functions: Includes Min/Max/Avg, Peak Hold, Data Hold, and Relative mode for detailed analysis of measurements.
• Auto Power Off: Energy-efficient design with a low battery indicator to prolong device life and ensure readiness.
• Waterproof Design: Meets IP67 standards for water and dust resistance, suitable for harsh working conditions.
• Built-in Flashlight: Enhances safety and usability in dark areas during testing.
• Durable Construction: Rubberized over molded housing provides impact and drop resistance for longevity.
• Complete Kit: Comes with test leads, temperature probe, (4) AAA batteries, and carrying case for convenience.

Triplett MM650 Detailed Specifications
