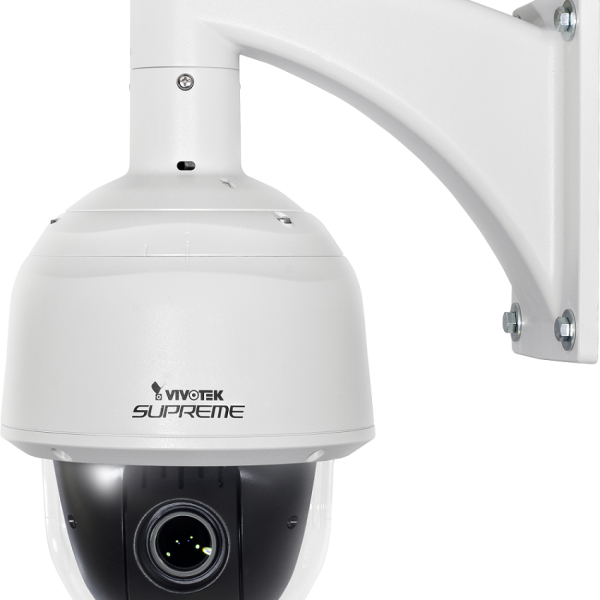

Vivotek SD8316E D1 36x Zoom Day/Night Extreme Weatherproof PoE Plus Speed Dome Network Camera, 3.4 – 122.4mm Lens

The Vivotek SD8316E is part of the SUPREME series product line offering D1 resolution with superb image quality. Adopting a 36x optical zoom lens, the SD8316E is able to capture details at top-notch quality. The IP66- and NEMA 4X-rated housing protects the camera body against rain, dust, and corrosion within a wide temperature range of between -40C to 55C. This feature ensures operation under extreme weather conditions and hazardous environments. It is especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are always required.

The SD8316E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 30 fps @ D1. Boasting WDR Pro Technology, the SD8316E can also cope with challenging lighting conditions and generate image quality close to the capabilities of the human eye. With a sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 220-degree tilt. Users can also easily control the lens position via a mouse or a joystick to track the object of interest and set up to 256 preset positions for patrolling. With the built-in auto tracking feature, the SD8316E provides instantaneous reaction to suspicious moving objects in wide area locations before operators are aware of activity.

As with all Vivotek true day/night cameras, the SD8316E features a removable IR-cut filter, maintaining clear images 24 hours a day. With audio detection, by recognizing increases or decreases in sound volume, an additional layer of intrusion detection is ensured. With other advanced features such as SD/SDHC/SDXC card slot, 802.3at compliant PoE Plus and 30 fps high quality video, the SD8316E is the best choice for the most demanding outdoor surveillance applications.

Vivotek SD8316E Camera Features

• Feature: D1 SONY Exview HAD CCD Sensor – Ensures high-quality image capture with excellent detail.
• Feature: 30 fps @ D1 – Provides smooth and clear video playback.
• Feature: 36x Optical Zoom (3.4 – 122.4mm) – Allows for detailed monitoring from a distance.
• Feature: WDR Pro for Unparalleled Visibility in High Contrast Environments – Enhances image quality in challenging lighting conditions.
• Feature: Removable IR-cut Filter for Day & Night Function – Maintains clear images at all times.
• Feature: 360-Degree Continuous Pan and 220-Degree Tilt – Offers flexible monitoring of large areas.
• Feature: Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec) – Supports versatile video compression for efficient storage.
• Feature: Weather-proof IP66-rated and NEMA4X Housing – Protects against harsh environmental conditions.
• Feature: -40C to 55C Wide Temperature Range for Extreme Weather Conditions – Ensures reliable operation in extreme temperatures.
• Feature: Audio Detection for Instant Alerts – Adds an extra layer of security by detecting sound fluctuations.
• Feature: Auto tracking for Moving Objects – Quickly alerts operators to activity in monitored areas.
• Feature: Built-in 802.3at Compliant PoE Plus – Simplifies installation and reduces wiring costs.
• Feature: 3D Privacy Masks for Additional Protection – Provides privacy for sensitive areas.
• Feature: Built-in SD/SDHC/SDXC Card Slot for On-board Storage – Facilitates local video storage for easy access.

Vivotek SD8316E Detailed Specifications
