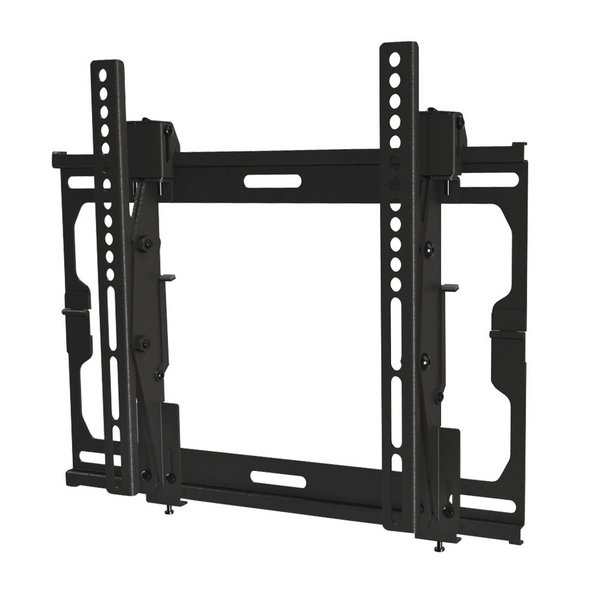

VMP FP-MFTB Multi-Just Mid-Size Flat Panel Flush Mount with Tilt

The tilt wall mount for the medium fl at panel display shall be the Video Mount Products (VMP) model FP-MFTB. The mount shall be designed to attach to at least 2 studs up to 16″ apart or other suitable support surface. The mount shall be primarily composed of formed steel and shall incorporate arc welds and security screws. The mount
shall be a universal style mount capable of mounting to most 27″-42″ fl at panel. The tilt rails shall be capable of accommodating a maximum hole pattern of 415 mm wide
and 345 mm tall. The mount shall be capable of tilting from -5° to +15°. The mount shall be capable of adjusting vertically 1″ post installation and have list adjustment
capability of ±3° post installation. The mount shall have an installer friendly kick stand to aid in the wiring of the fl at panel. The load capacity shall be 100 lbs.

Features

• Holds 27″ – 42″ fl at panels
• Maximum fl at panel hole pattern – 415mm x 345mm
• Adjustable -5° to +15° tilt
• Vertical height adjustment – 1″
• List adjustment –±3°
• Installation friendly kickstand
• Distance from wall to back of the fl at panel –2.3″
• Load capacity – 100 lbs
• Black powder coat finish
